Standard Super Hinge

$254.95$958.76



Clear
Want a discount? Become a member!
Want a discount? Become a member!
Want a discount? Become a member!
Want a discount? Become a member!
Want a discount? Become a member!
Want a discount? Become a member!
SKU: N/A Category:

Description

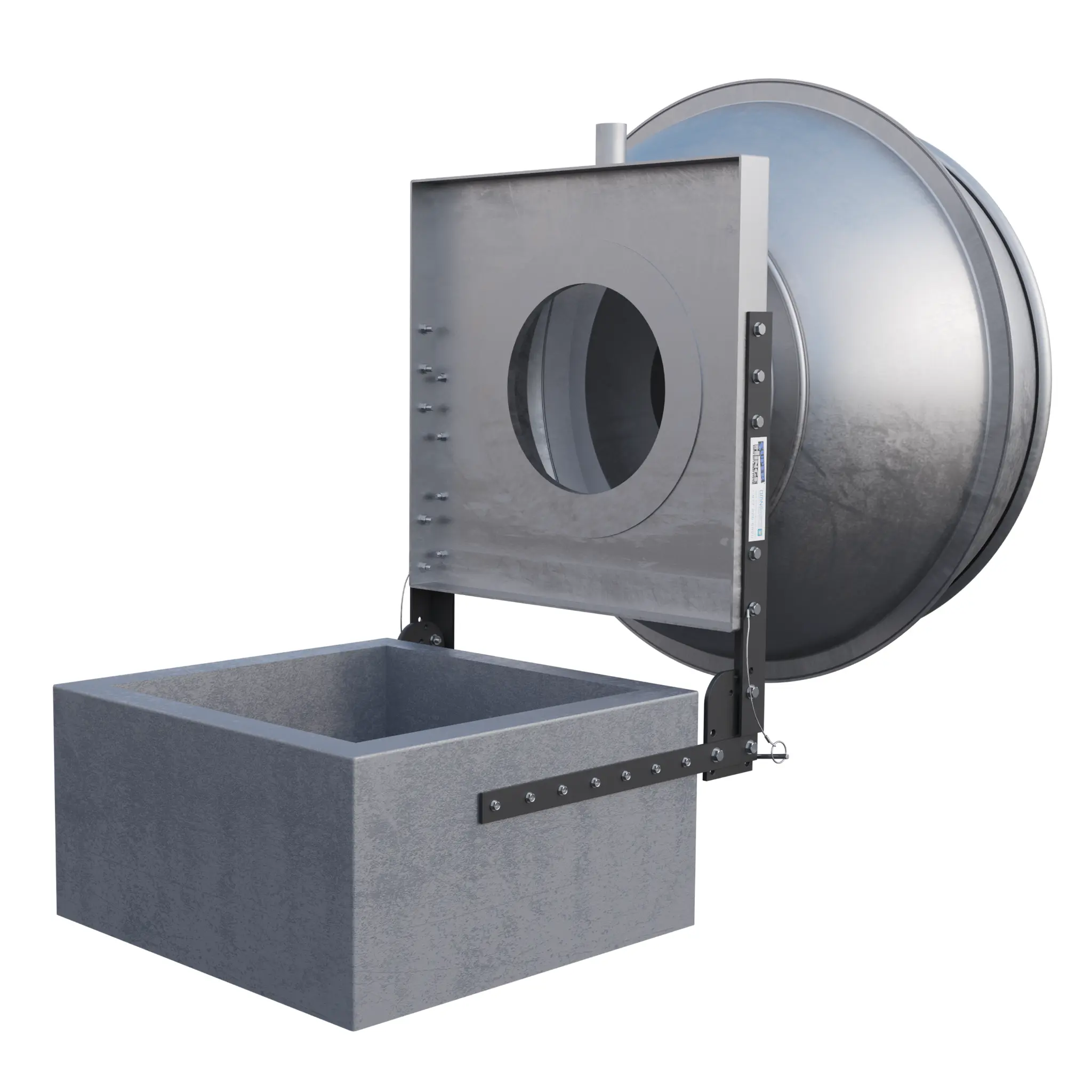

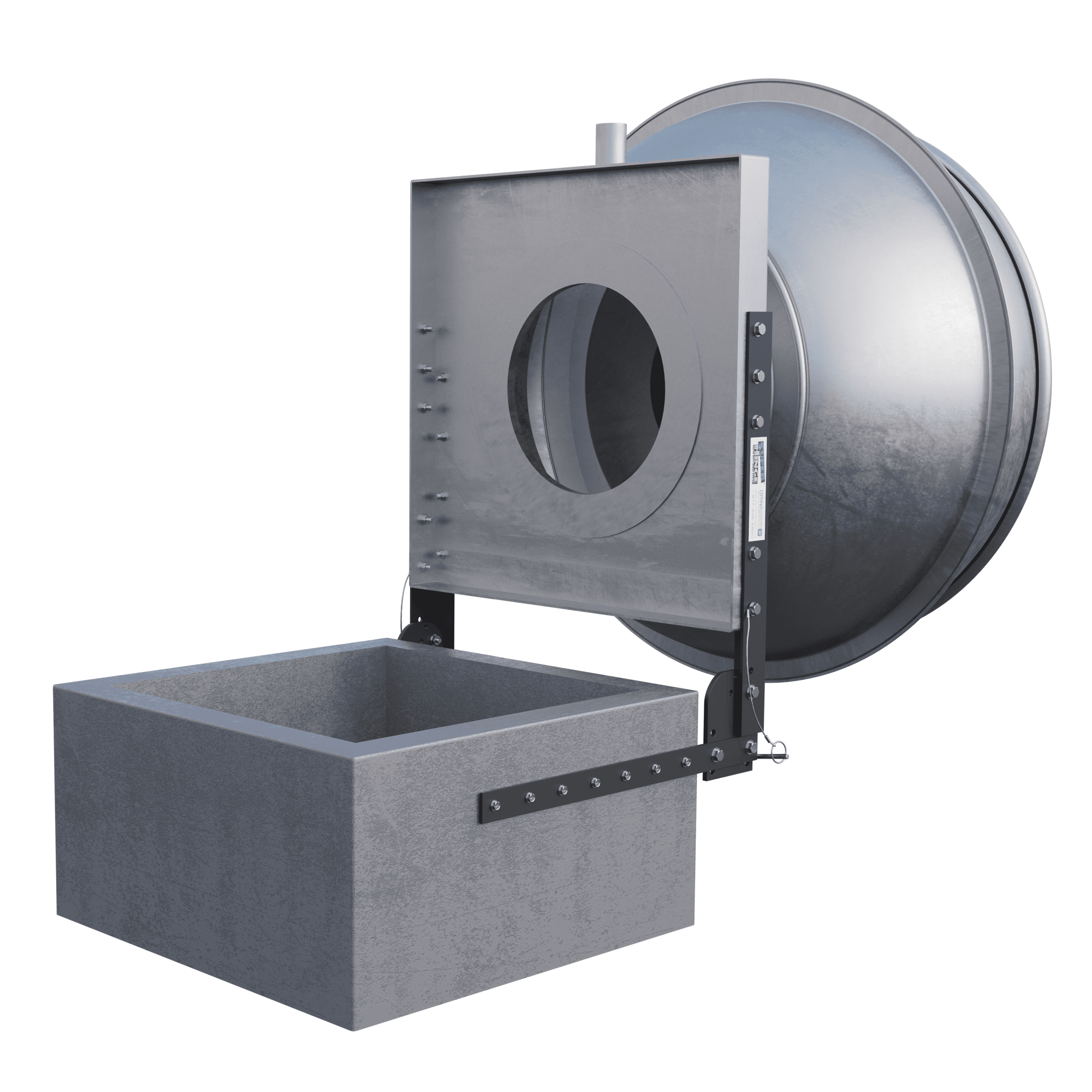

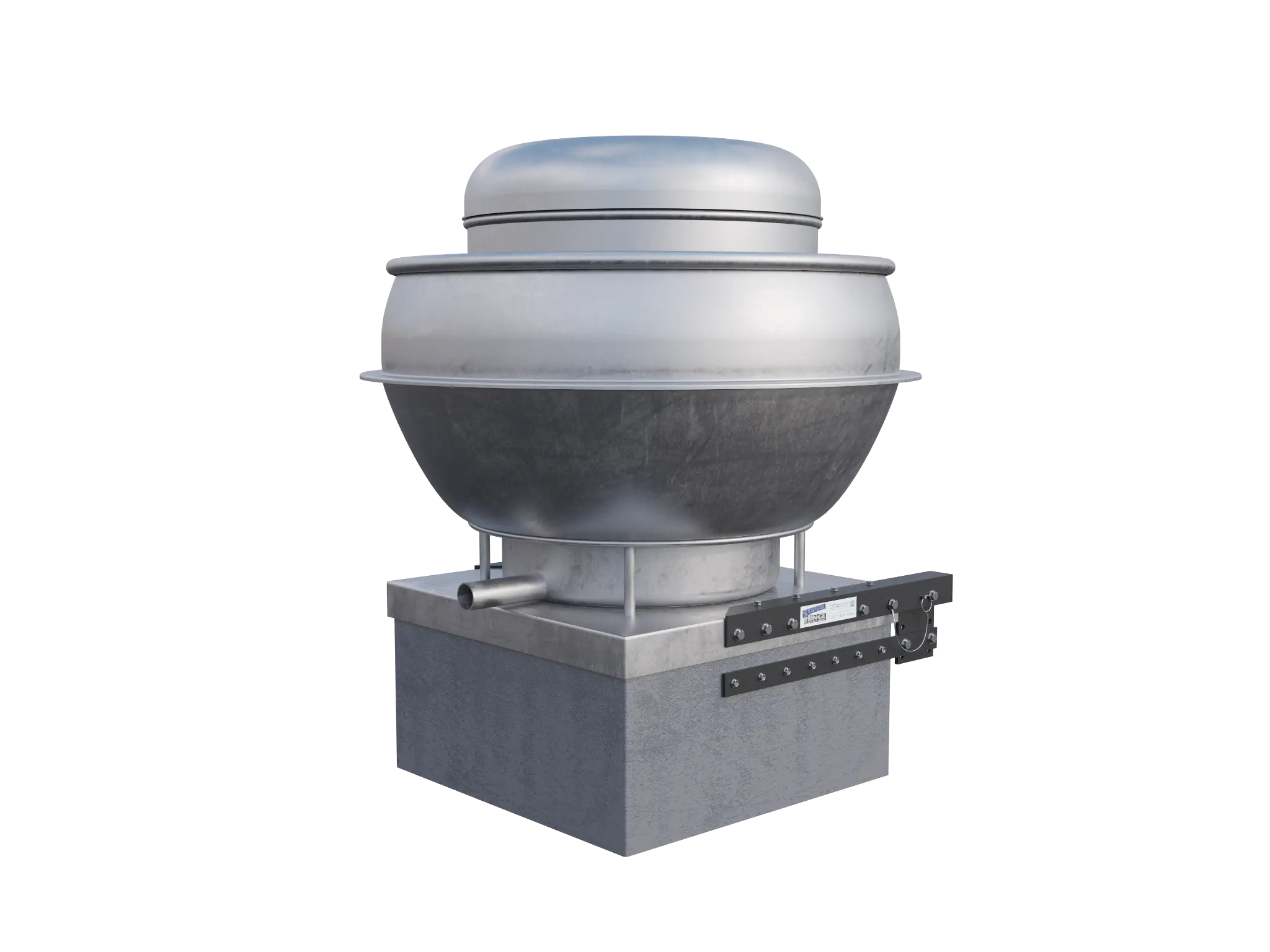

The patented Super Hinge™ provides access to rooftop up-blast exhaust fans and is the ONLY patented NFPA 96 compliant fan hinge on the market. Hinged up-blast exhaust fans are required for commercial exhaust systems to be NFPA 96 compliant. The NFPA 96 requirements state the following code for hinging compliance:

  • Hinged commercial up-blast exhaust fans are required for compliance
  • Service hold-open retainers are required

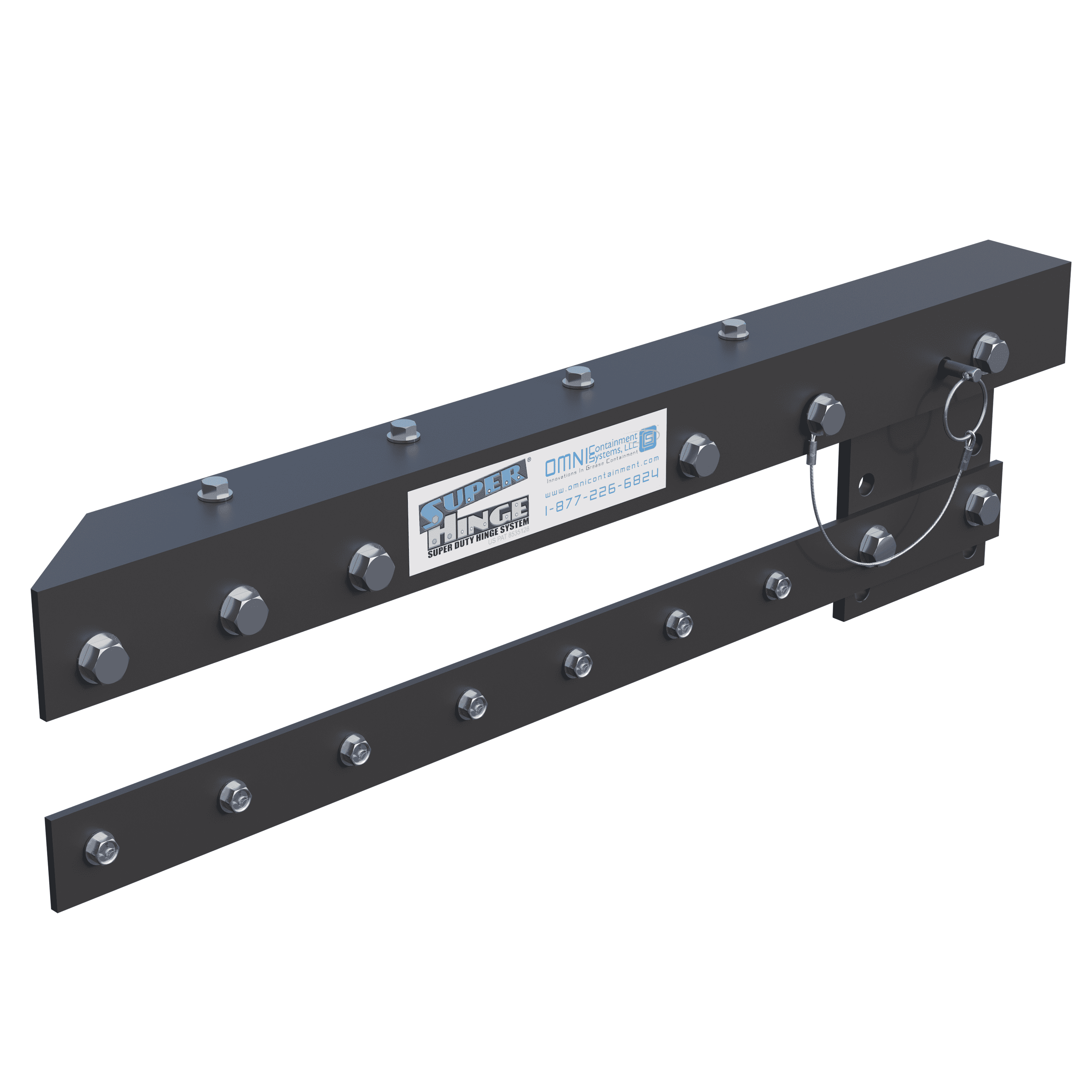

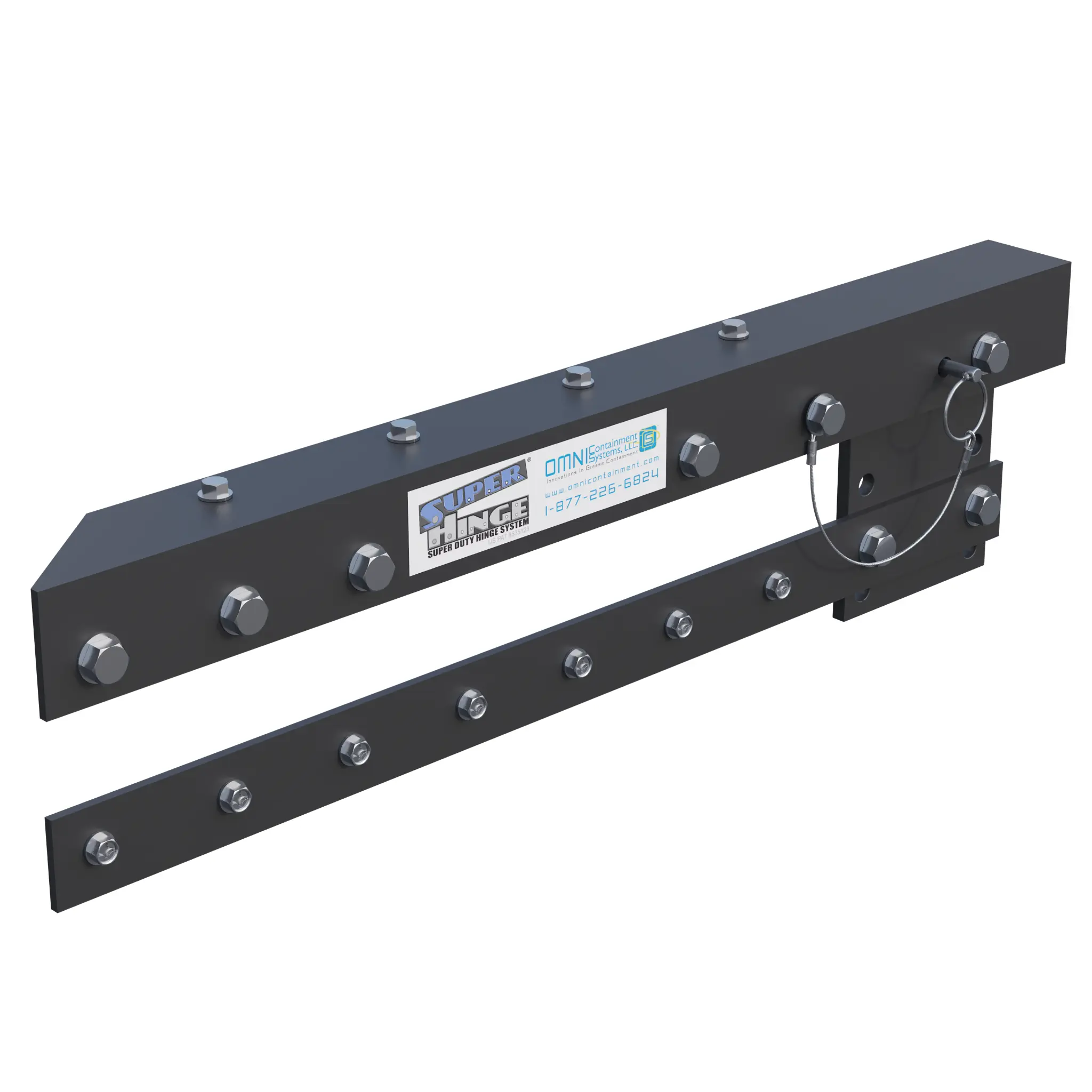

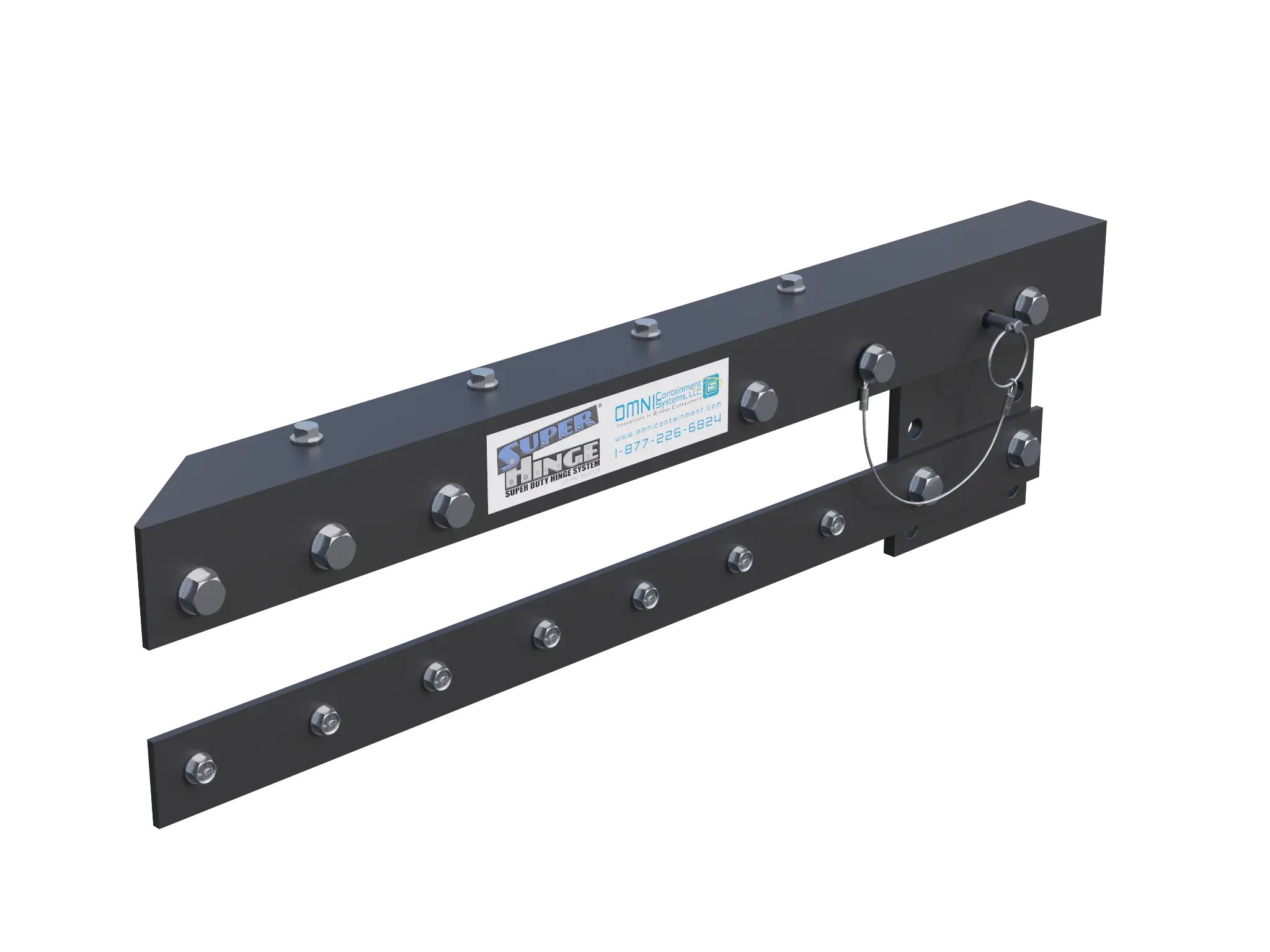

The standard Super Hinge™ has an L-bracket on the top support arm that helps to reinforce damaged up-blast fans or support heavy fan weight distribution. The Super Hinge™ features make it the most versatile hinge system Omni Containment Systems has to offer. It can be adapted to fit all of the up-blast exhaust fans on the market.

Super Hinge Print and Fit Documents:

Typical Fan

Reduced Fan Base

Tapered Duct

Side Wall Fan

Mismatched Curb

The Super Hinge™ Service Hold Open Retention System is patented and built into all variations of the Super Hinge™ Fan Hinge System and are manufactured with durable materials at our factory in the USA.

  • Allows for single-person opening of an up-blast exhaust fan
  • Creates a more stable foundation for fan opening
  • Creates a safer working environment
  • The built-in service hold-open retainer secures the hinge into a locked position during servicing
  • Creates a more secure seal and better airflow
  • Prolongs the life of fan by reinforcing the base of the fan

Additional Info: Super Hinge™ Spec Sheet

Use of the Super Hinge™ should be reviewed using the Omni Containment System’s supplied Print-N-Fit form. This form identifies specific measurements for proper size and application of the appropriate Super Hinge™.

Proudly made in the USA.

Additional information

Weight N/A
Dimensions N/A
Standard Super Hinge Size

14" (Fans 10-15 Inches), 18" (Fans 12-18 Inches), 24" (Fans 18-27 Inches), 30" (Fans 24-36 Inches), 36" (Fans 30-45 Inches), 42" (Fans 36-54 Inches), 48" (Fans 42-63 Inches)
